IR2136STRPBF

In Stock: 2,252
IR2136STRPBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2136STRPBF Infineon Technologies
IR2136STRPBF

Infineon Technologies

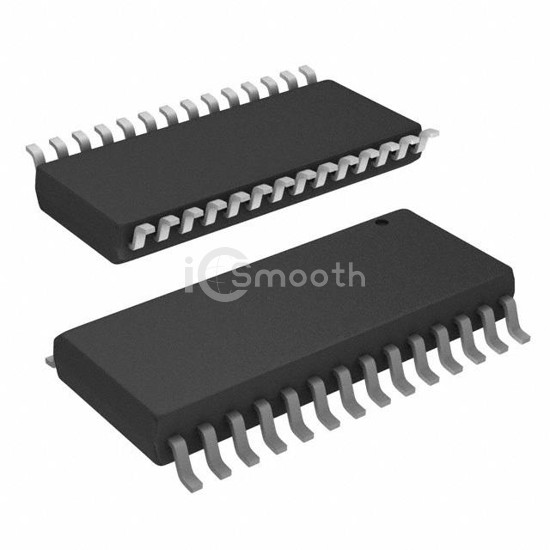

IC GATE DRVR HALF-BRIDGE 28SOIC

IR2136STRPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,252

Tiered Pricing USD
1+ $3.1800 —
10+ $2.3830 -25%
25+ $2.1840 -31%
100+ $1.9657 -38%
250+ $1.8615 -41%
500+ $1.7987 -43% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 3V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)125ns, 50ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SOIC
