IR2136SPBF

In Stock: 780

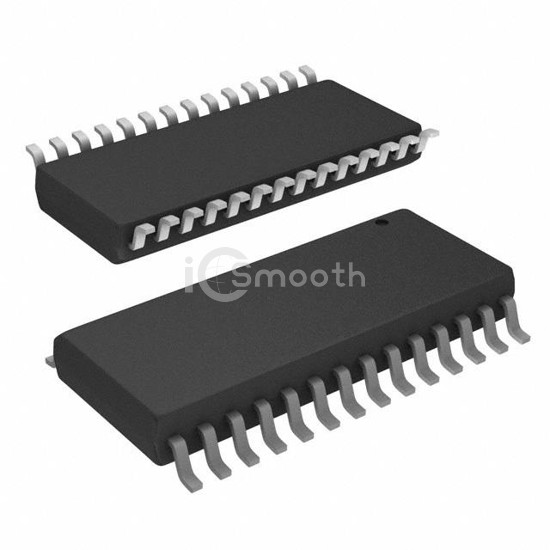

IR2136SPBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2136SPBF Infineon Technologies
IR2136SPBF

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 28SOIC

IR2136SPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 780

Tiered Pricing USD
1+ $6.8900 —
10+ $5.3360 -23%
25+ $4.9476 -28%
100+ $4.5211 -34%
250+ $4.3706 -37% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 3V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)125ns, 50ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SOIC
