IR2136PBF

In Stock: 167
IR2136PBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2136PBF Infineon Technologies
IR2136PBF

Infineon Technologies

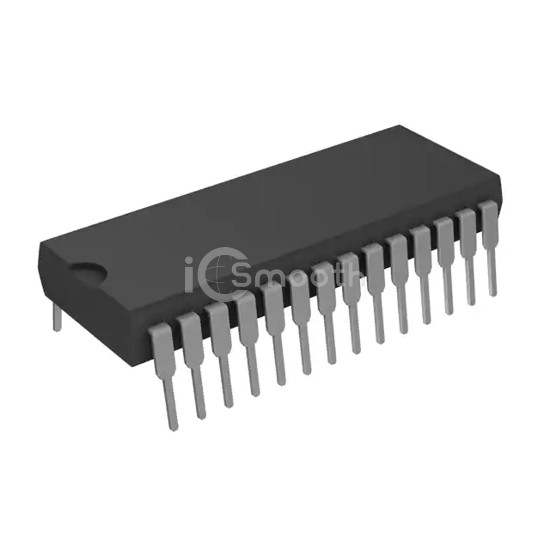

IC GATE DRVR HALF-BRIDGE 28DIP

IR2136PBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 28DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 167

Specifications

15 parameters
Product StatusLast Time Buy
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 3V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)125ns, 50ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-PDIP
