IR2136JPBF-INF

In Stock: 1,161

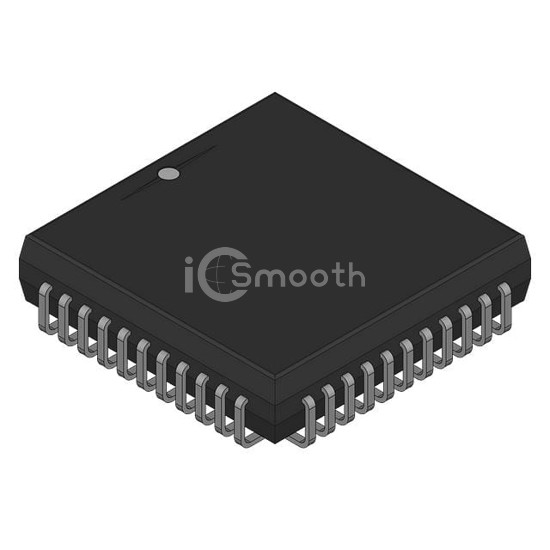

IR2136JPBF-INF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2136JPBF-INF Infineon Technologies
IR2136JPBF-INF

Infineon Technologies

3-PHASE BRIDGE DRIVER

IR2136JPBF-INF is a PMIC - Gate Drivers manufactured by Infineon Technologies. 3-PHASE BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 44-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 1,161

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 3V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)125ns, 50ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case44-LCC (J-Lead)
Supplier Device Package44-PLCC (16.59x16.59)
