IR2135JTRPBF

In Stock: 135
IR2135JTRPBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2135JTRPBF Infineon Technologies
IR2135JTRPBF

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 44PLCC

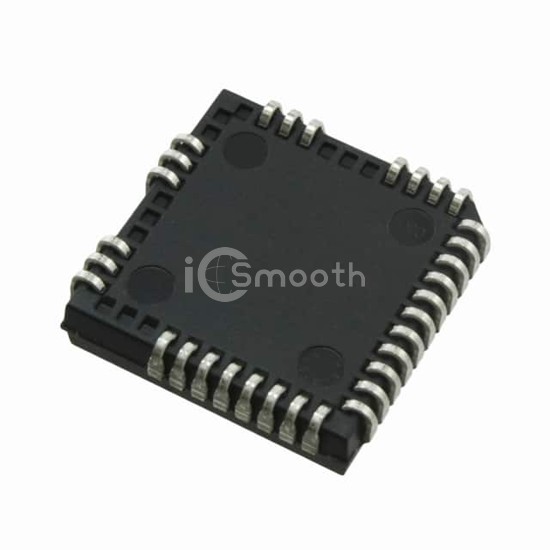

IR2135JTRPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 44PLCC. Key specifications: mounting type Surface Mount, operating temperature 125°C (TJ), voltage - supply 10V ~ 20V, package / case 44-LCC (J-Lead), 32 Leads.

Datasheet Request a Quote

In Stock: 135

Tiered Pricing USD
1+ $8.3900 —
10+ $6.5060 -22%
25+ $6.0352 -28%
100+ $5.5181 -34%
250+ $5.2715 -37% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)250mA, 500mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)90ns, 40ns
Operating Temperature125°C (TJ)
Mounting TypeSurface Mount
Package / Case44-LCC (J-Lead), 32 Leads
Supplier Device Package44-PLCC, 32 Leads (16.58x16.58)
