IR2130JTRPBF

In Stock: 4,903

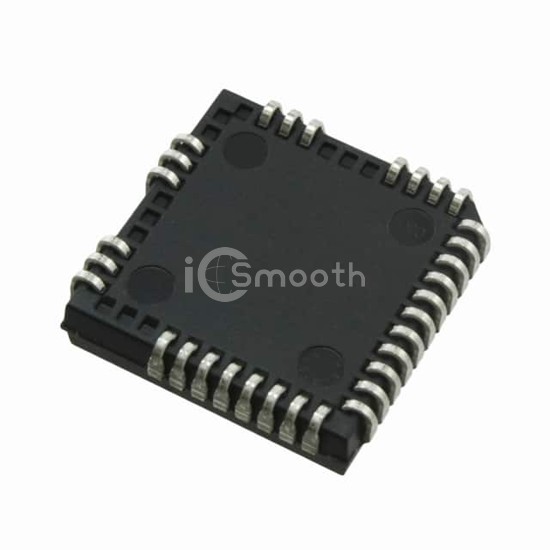

IR2130JTRPBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2130JTRPBF Infineon Technologies
IR2130JTRPBF

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 44PLCC

IR2130JTRPBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 44-LCC (J-Lead), 32 Leads.

Datasheet Request a Quote

In Stock: 4,903

Tiered Pricing USD
1+ $7.6600 —
10+ $5.9240 -23%
25+ $5.4896 -28%
100+ $5.0123 -35%
250+ $4.7846 -38% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)250mA, 500mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)80ns, 35ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case44-LCC (J-Lead), 32 Leads
Supplier Device Package44-PLCC, 32 Leads (16.58x16.58)
