IR2114SS

In Stock: 3,145
IR2114SS - Infineon Technologies - PMIC - Gate Drivers
REF: IR2114SS Infineon Technologies
IR2114SS

Infineon Technologies

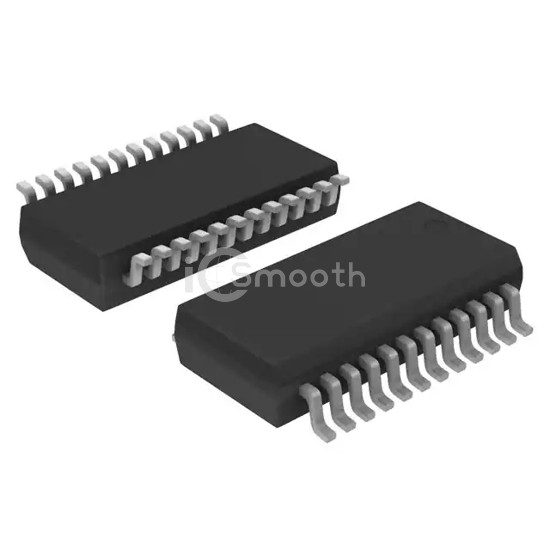

IC GATE DRVR HALF-BRIDGE 24SSOP

IR2114SS is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 11.5V ~ 20V, package / case 24-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 3,145

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT
Voltage - Supply11.5V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)2A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)24ns, 7ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
