IR2113-2

In Stock: 5,139

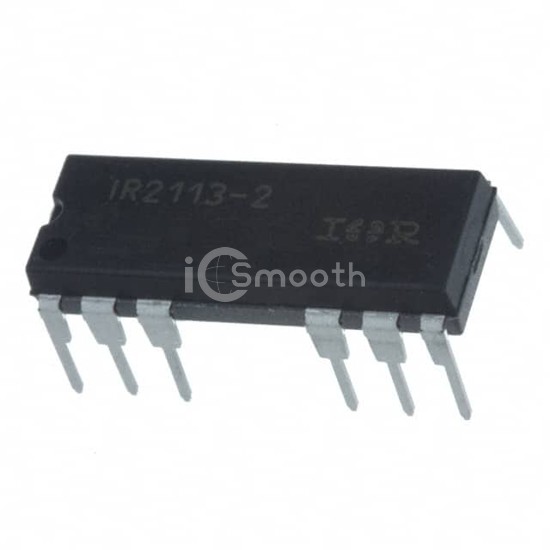

IR2113-2 - Infineon Technologies - PMIC - Gate Drivers
REF: IR2113-2 Infineon Technologies
IR2113-2

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 16DIP

IR2113-2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V ~ 20V, package / case 16-DIP (0.300", 7.62mm), 14 Leads.

Datasheet Request a Quote

In Stock: 5,139

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply3.3V ~ 20V
Logic Voltage - VIL, VIH6V, 9.5V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)25ns, 17ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm), 14 Leads
Supplier Device Package16-PDIP
