IR2113-1

In Stock: 1,708

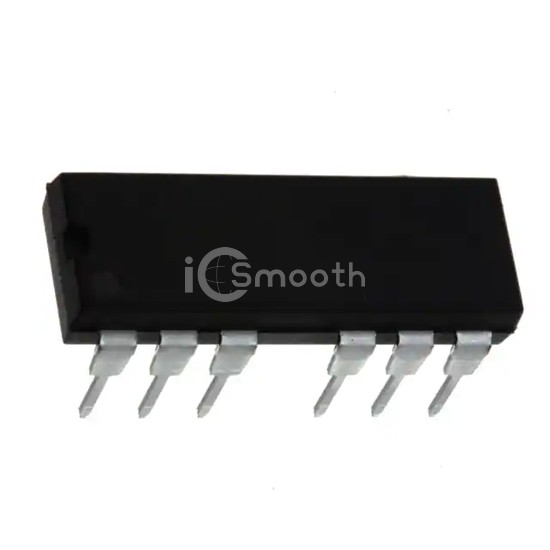

IR2113-1 - Infineon Technologies - PMIC - Gate Drivers
REF: IR2113-1 Infineon Technologies
IR2113-1

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 14DIP

IR2113-1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V ~ 20V, package / case 14-DIP (0.300", 7.62mm), 13 Leads.

Datasheet Request a Quote

In Stock: 1,708

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply3.3V ~ 20V
Logic Voltage - VIL, VIH6V, 9.5V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)25ns, 17ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm), 13 Leads
Supplier Device Package14-PDIP
