IR2112-2PBF

In Stock: 6,045

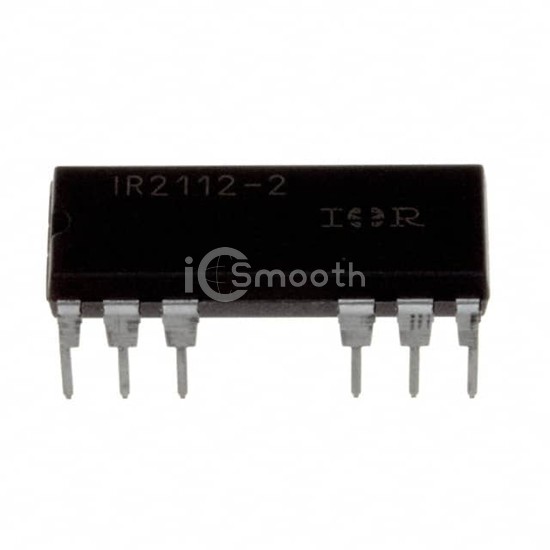

IR2112-2PBF - Infineon Technologies - PMIC - Gate Drivers
REF: IR2112-2PBF Infineon Technologies
IR2112-2PBF

Infineon Technologies

IC GATE DRVR HI/LOW SIDE 16DIP

IR2112-2PBF is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HI/LOW SIDE 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 16-DIP (0.300", 7.62mm), 14 Leads.

Datasheet Request a Quote

In Stock: 6,045

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH6V, 9.5V
Current - Peak Output (Source, Sink)250mA, 500mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)80ns, 40ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm), 14 Leads
Supplier Device Package16-PDIP
