IR2112-1

In Stock: 1,782

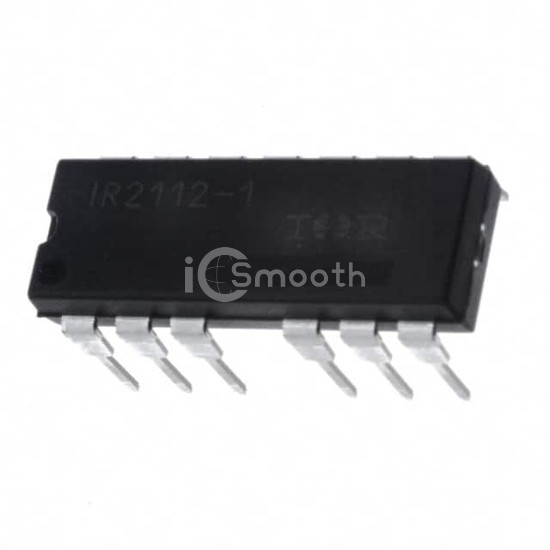

IR2112-1 - Infineon Technologies - PMIC - Gate Drivers
REF: IR2112-1 Infineon Technologies
IR2112-1

Infineon Technologies

IC GATE DRVR HI/LOW SIDE 14DIP

IR2112-1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HI/LOW SIDE 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 14-DIP (0.300", 7.62mm), 13 Leads.

Datasheet Request a Quote

In Stock: 1,782

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH6V, 9.5V
Current - Peak Output (Source, Sink)250mA, 500mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)80ns, 40ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm), 13 Leads
Supplier Device Package14-PDIP
