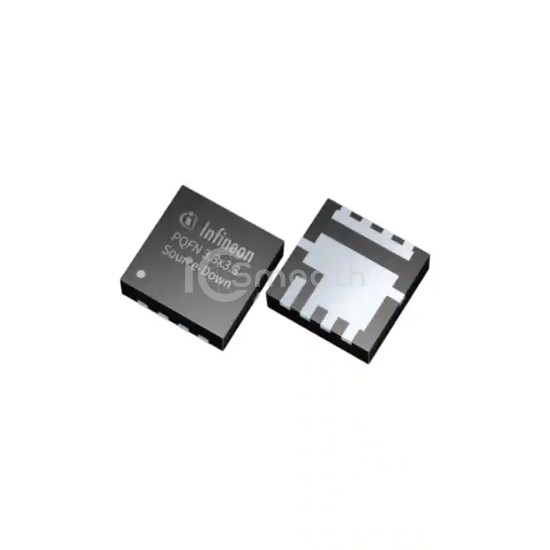

Name: IQE006NE2LM5CGATMA1
Brand: Infineon Technologies
SKU: IQE006NE2LM5CGATMA1
Price: 2.92 USD
Availability: InStock

REF: IQE006NE2LM5CGATMA1 Infineon Technologies

IQE006NE2LM5CGATMA1

Infineon Technologies

MOSFET N-CH 25V 41A/298A IPAK

IQE006NE2LM5CGATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 25V 41A/298A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Request a Quote

In Stock: 8,629

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	41A (Ta), 298A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	650mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	82.1 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	5453 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 89W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	IPAK (TO-251AA)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
