Name: IPZ60R125P6FKSA1
Brand: Infineon Technologies
SKU: IPZ60R125P6FKSA1
Availability: InStock

REF: IPZ60R125P6FKSA1 Infineon Technologies

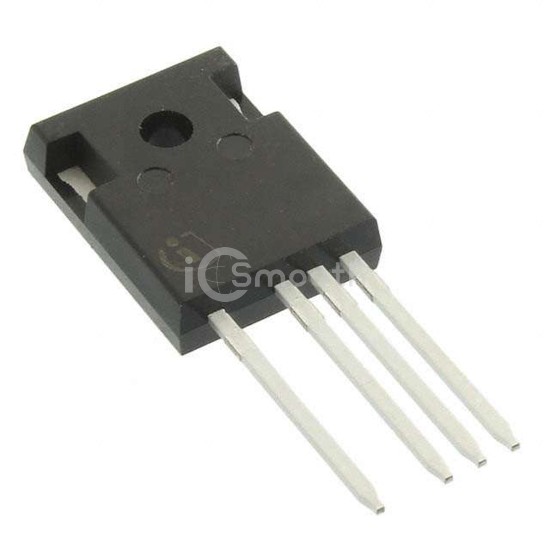

IPZ60R125P6FKSA1

MOSFET N-CH 600V 37.9A TO247-4

IPZ60R125P6FKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 37.9A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 2,268

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	37.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	99mOhm @ 14.5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1.21mA
Gate Charge (Qg) (Max) @ Vgs	70 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3330 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	219W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO247-4
Package / Case	TO-247-4
