Name: IPW90R120C3XKSA1
Brand: Infineon Technologies
SKU: IPW90R120C3XKSA1
Price: 19.43 USD
Availability: InStock

REF: IPW90R120C3XKSA1 Infineon Technologies

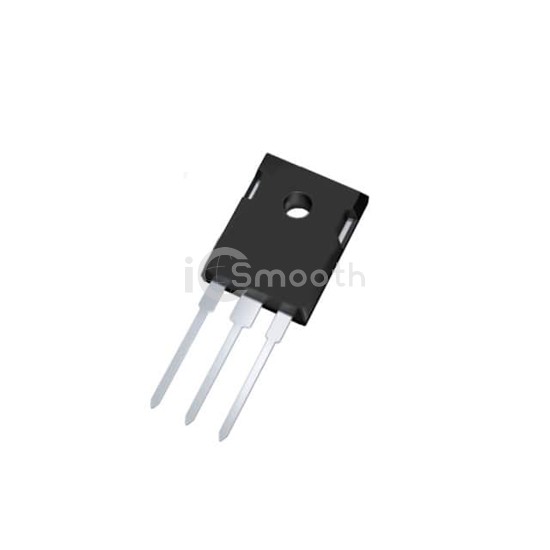

IPW90R120C3XKSA1

Infineon Technologies

MOSFET N-CH 900V 36A TO247-3

IPW90R120C3XKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 900V 36A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,273

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	120mOhm @ 26A, 10V
Vgs(th) (Max) @ Id	3.5V @ 2.9mA
Gate Charge (Qg) (Max) @ Vgs	270 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6800 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	417W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO247-3-21
Package / Case	TO-247-3
