Name: IPU80R2K0P7AKMA1
Brand: Infineon Technologies
SKU: IPU80R2K0P7AKMA1
Price: 0.64 USD
Availability: InStock

REF: IPU80R2K0P7AKMA1 Infineon Technologies

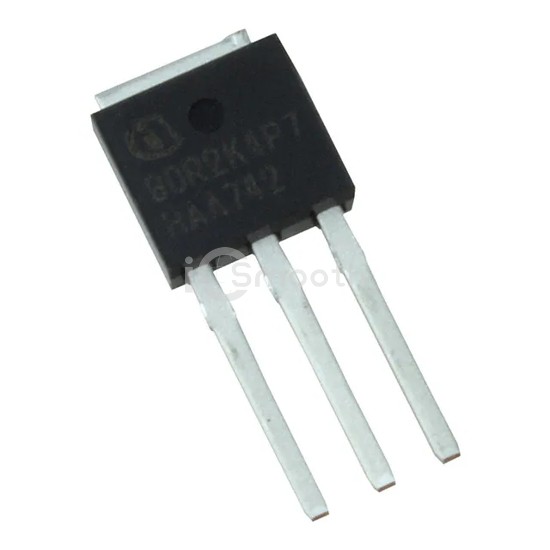

IPU80R2K0P7AKMA1

Infineon Technologies

MOSFET N-CH 800V 3A TO251-3

IPU80R2K0P7AKMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 800V 3A TO251-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 7,363

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 940mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	175 pF @ 500 V
FET Feature	-
Power Dissipation (Max)	24W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
