Name: IPTC015N10NM5ATMA1
Brand: Infineon Technologies
SKU: IPTC015N10NM5ATMA1
Price: 8.57 USD
Availability: InStock

REF: IPTC015N10NM5ATMA1 Infineon Technologies

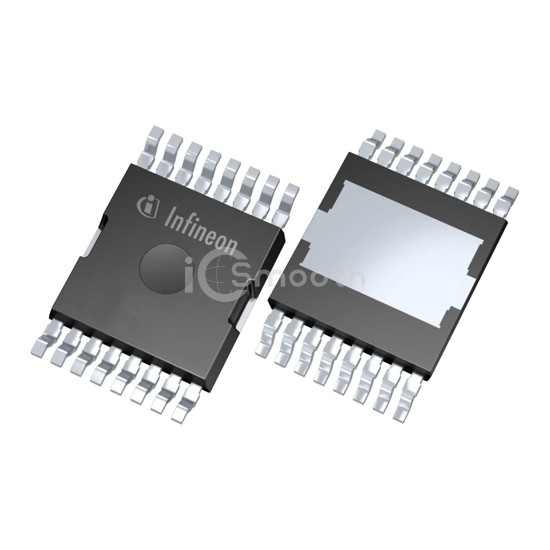

IPTC015N10NM5ATMA1

Infineon Technologies

MOSFET N-CH 100V 35A/354A HDSOP

IPTC015N10NM5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 35A/354A HDSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 16-PowerSOP Module.

Datasheet Request a Quote

In Stock: 3,861

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	35A (Ta), 354A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.5mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.8V @ 275µA
Gate Charge (Qg) (Max) @ Vgs	208 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	16000 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-16-2
Package / Case	16-PowerSOP Module
