Name: IPTC014N08NM5ATMA1
Brand: Infineon Technologies
SKU: IPTC014N08NM5ATMA1
Price: 7.34 USD
Availability: InStock

REF: IPTC014N08NM5ATMA1 Infineon Technologies

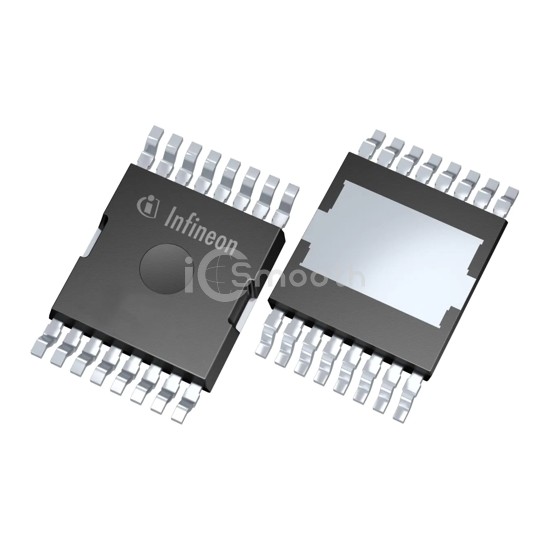

IPTC014N08NM5ATMA1

Infineon Technologies

TRENCH 40<-<100V PG-HDSOP-16

IPTC014N08NM5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. TRENCH 40<-<100V PG-HDSOP-16. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 16-PowerSOP Module.

Datasheet Request a Quote

In Stock: 6,065

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	37A (Ta), 330A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.8V @ 230µA
Gate Charge (Qg) (Max) @ Vgs	180 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13000 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-16-2
Package / Case	16-PowerSOP Module
