IPTC012N08NM5ATMA1

In Stock: 1,063

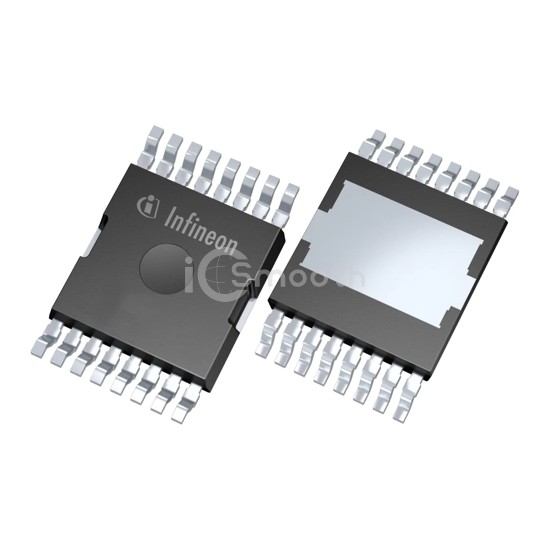

IPTC012N08NM5ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPTC012N08NM5ATMA1 Infineon Technologies
IPTC012N08NM5ATMA1

Infineon Technologies

MOSFET N-CH 80V 40A/396A HDSOP

IPTC012N08NM5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 40A/396A HDSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 16-PowerSOP Module.

Datasheet Request a Quote

In Stock: 1,063

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C40A (Ta), 396A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id3.8V @ 275µA
Gate Charge (Qg) (Max) @ Vgs219 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds16000 pF @ 40 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 375W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HDSOP-16-2
Package / Case16-PowerSOP Module
