IPT059N15N3ATMA1

In Stock: 7,701

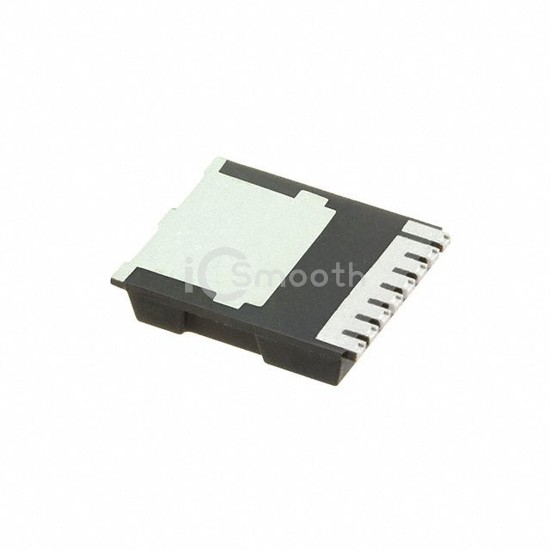

IPT059N15N3ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPT059N15N3ATMA1 Infineon Technologies
IPT059N15N3ATMA1

Infineon Technologies

MOSFET N-CH 150V 155A 8HSOF

IPT059N15N3ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 150V 155A 8HSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 7,701

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C155A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs5.9mOhm @ 150A, 10V
Vgs(th) (Max) @ Id4V @ 270µA
Gate Charge (Qg) (Max) @ Vgs92 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7200 pF @ 75 V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOF-8-1
Package / Case8-PowerSFN
