Name: IPT007N06NATMA1
Brand: Infineon Technologies
SKU: IPT007N06NATMA1
Price: 8.56 USD
Availability: InStock

REF: IPT007N06NATMA1 Infineon Technologies

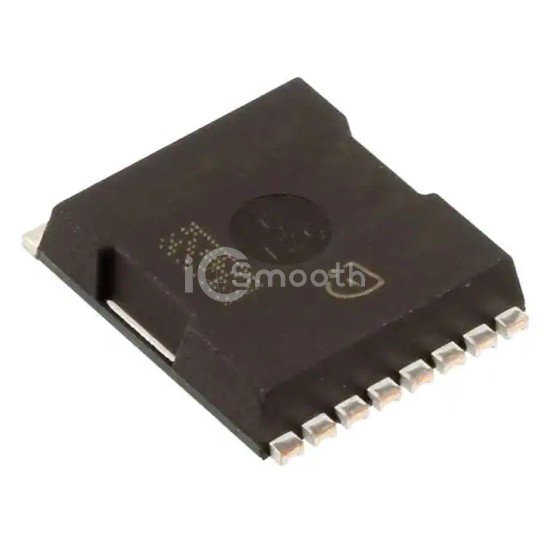

IPT007N06NATMA1

Infineon Technologies

MOSFET N-CH 60V 300A 8HSOF

IPT007N06NATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 300A 8HSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 6,257

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	0.75mOhm @ 150A, 10V
Vgs(th) (Max) @ Id	3.3V @ 280µA
Gate Charge (Qg) (Max) @ Vgs	287 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	16000 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HSOF-8-1
Package / Case	8-PowerSFN
