IPT004N03LATMA1

In Stock: 1,836

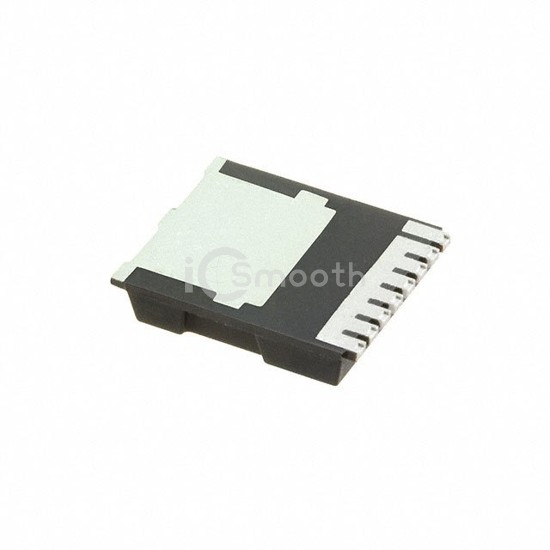

IPT004N03LATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPT004N03LATMA1 Infineon Technologies
IPT004N03LATMA1

Infineon Technologies

MOSFET N-CH 30V 300A 8HSOF

IPT004N03LATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 300A 8HSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 1,836

Specifications

17 parameters
Product StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.4mOhm @ 150A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs163 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds24000 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 300W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOF-8-1
Package / Case8-PowerSFN
