Name: IPSA70R1K4P7SAKMA1
Brand: Infineon Technologies
SKU: IPSA70R1K4P7SAKMA1
Price: 0.25 USD
Availability: InStock

REF: IPSA70R1K4P7SAKMA1 Infineon Technologies

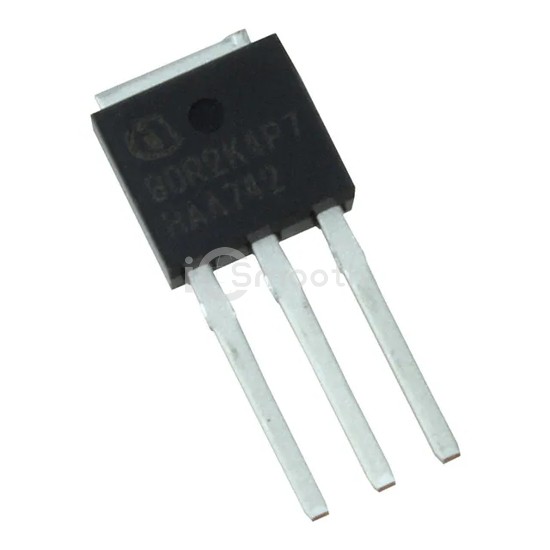

IPSA70R1K4P7SAKMA1

Infineon Technologies

MOSFET N-CH 700V 4A TO251-3

IPSA70R1K4P7SAKMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 4A TO251-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 16,500

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 700mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs	4.7 nC @ 400 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	158 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	22.7W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
