Name: IPS80R2K4P7AKMA1
Brand: Infineon Technologies
SKU: IPS80R2K4P7AKMA1
Price: 0.38 USD
Availability: InStock

REF: IPS80R2K4P7AKMA1 Infineon Technologies

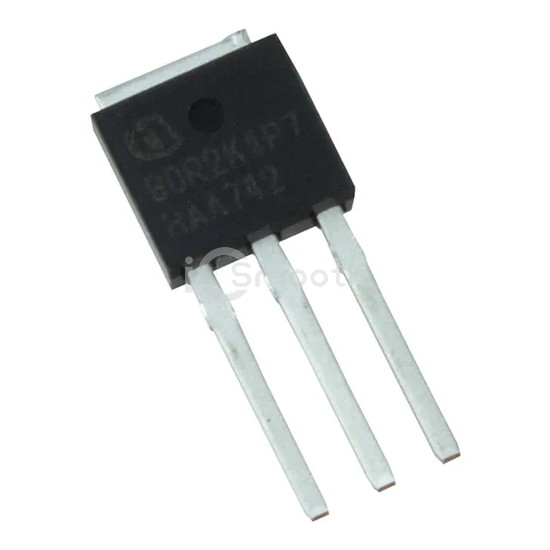

IPS80R2K4P7AKMA1

Infineon Technologies

MOSFET N-CH 800V 2.5A TO251-3

IPS80R2K4P7AKMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 800V 2.5A TO251-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 53,945

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.4Ohm @ 800mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs	7.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	150 pF @ 500 V
FET Feature	-
Power Dissipation (Max)	22W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
