Name: IPS50R520CP
Brand: Infineon Technologies
SKU: IPS50R520CP
Price: 0.63 USD
Availability: InStock

REF: IPS50R520CP Infineon Technologies

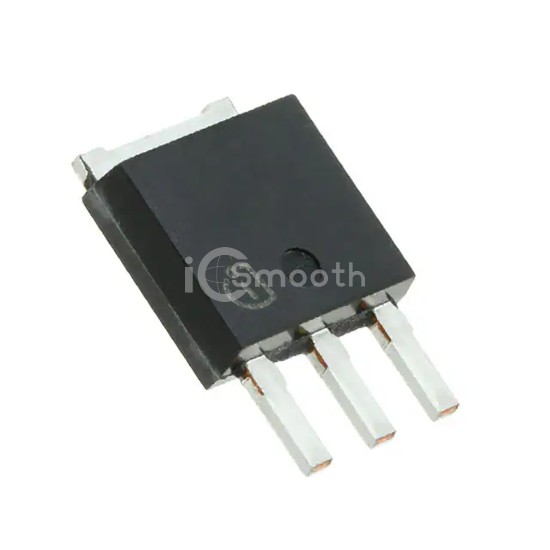

IPS50R520CP

Infineon Technologies

MOSFET N-CH 550V 7.1A TO251-3

IPS50R520CP is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 550V 7.1A TO251-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 6,880

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	550 V
Current - Continuous Drain (Id) @ 25°C	7.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	520mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	680 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	66W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3-11
Package / Case	TO-251-3 Stub Leads, IPak
