Name: IPS20N03L G
Brand: Infineon Technologies
SKU: IPS20N03L G
Availability: InStock

REF: IPS20N03L G Infineon Technologies

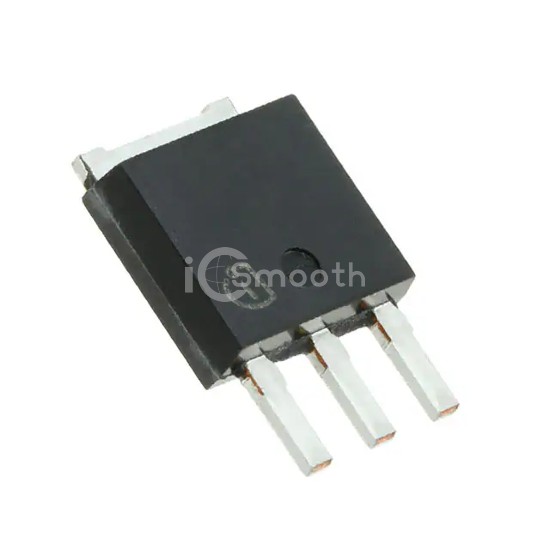

IPS20N03L G

MOSFET N-CH 30V 30A TO251-3

IPS20N03L G is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 30A TO251-3. Key specifications: mounting type Through Hole, package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 7,552

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3-11
Package / Case	TO-251-3 Stub Leads, IPak
