Name: IPP80P03P4L04AKSA2
Brand: Infineon Technologies
SKU: IPP80P03P4L04AKSA2
Price: 3.30 USD
Availability: InStock

REF: IPP80P03P4L04AKSA2 Infineon Technologies

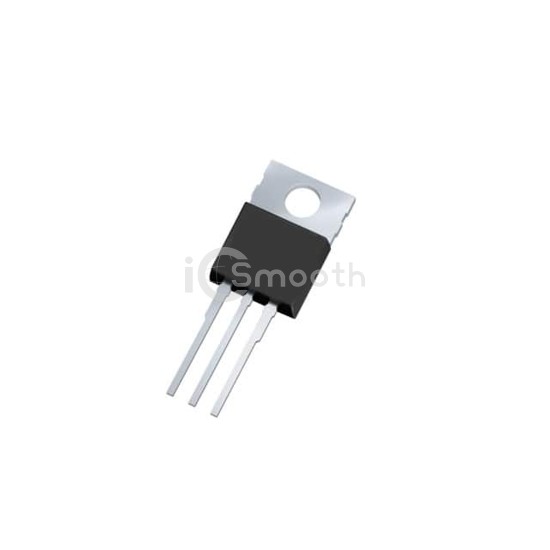

IPP80P03P4L04AKSA2

Infineon Technologies

MOSFET P-CH 30V 80A TO220-3

IPP80P03P4L04AKSA2 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 80A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Request a Quote

In Stock: 4,026

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	4.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	2V @ 253µA
Gate Charge (Qg) (Max) @ Vgs	160 nC @ 10 V

Vgs (Max)	+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds	11300 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	137W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-1
Package / Case	TO-220-3
