IPP120P04P4L03AKSA2

In Stock: 3,632

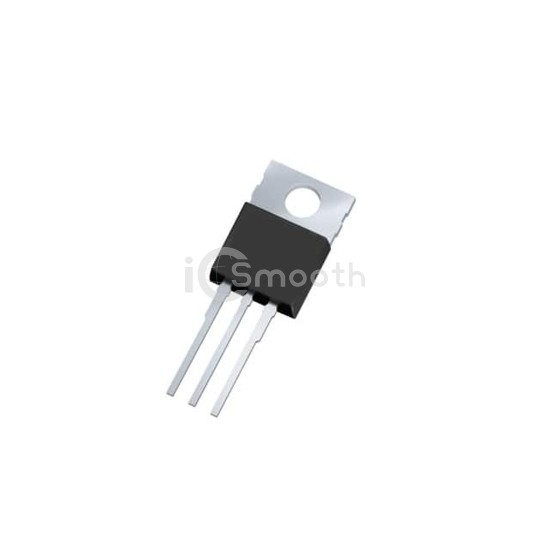

IPP120P04P4L03AKSA2 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPP120P04P4L03AKSA2 Infineon Technologies
IPP120P04P4L03AKSA2

Infineon Technologies

MOSFET P-CH 40V 120A TO220-3

IPP120P04P4L03AKSA2 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 40V 120A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 3,632

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.2V @ 340µA
Gate Charge (Qg) (Max) @ Vgs234 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds15000 pF @ 25 V
FET Feature-
Power Dissipation (Max)136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-3-1
Package / CaseTO-220-3
