IPN70R450P7SATMA1

In Stock: 8,645

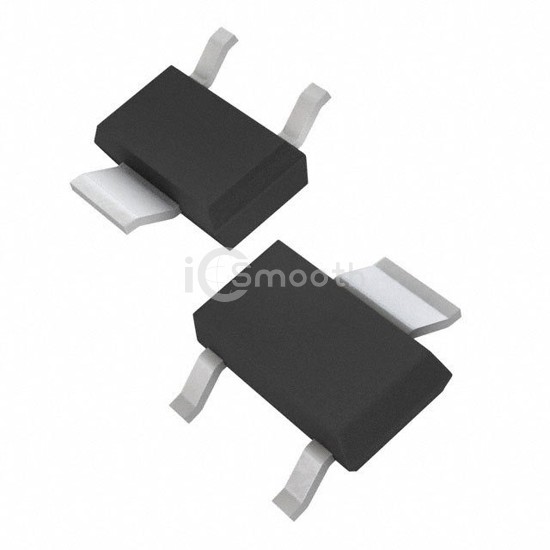

IPN70R450P7SATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPN70R450P7SATMA1 Infineon Technologies
IPN70R450P7SATMA1

Infineon Technologies

MOSFET N-CH 700V 10A SOT223

IPN70R450P7SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 10A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 8,645

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)700 V
Current - Continuous Drain (Id) @ 25°C10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs450mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id3.5V @ 120µA
Gate Charge (Qg) (Max) @ Vgs13.1 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds424 pF @ 400 V
FET Feature-
Power Dissipation (Max)7.1W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseTO-261-4, TO-261AA
