Name: IPN70R2K0P7SATMA1
Brand: Infineon Technologies
SKU: IPN70R2K0P7SATMA1
Price: 0.70 USD
Availability: InStock

REF: IPN70R2K0P7SATMA1 Infineon Technologies

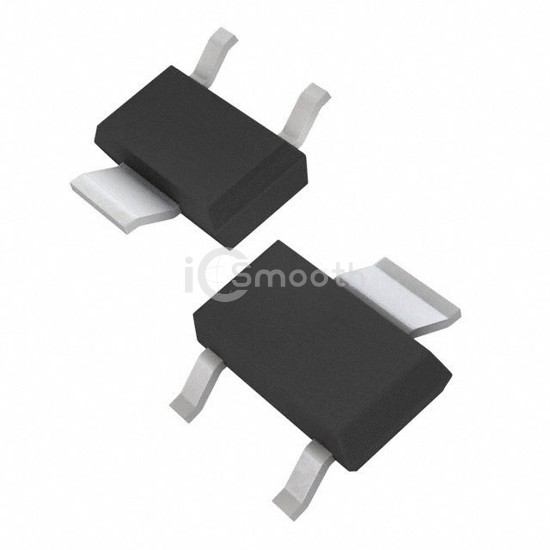

IPN70R2K0P7SATMA1

Infineon Technologies

MOSFET N-CH 700V 3A SOT223

IPN70R2K0P7SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 3A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 29

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 30µA
Gate Charge (Qg) (Max) @ Vgs	3.8 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	130 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	6W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223
Package / Case	TO-261-4, TO-261AA
