Name: IPN70R1K4P7SATMA1
Brand: Infineon Technologies
SKU: IPN70R1K4P7SATMA1
Price: 0.75 USD
Availability: InStock

REF: IPN70R1K4P7SATMA1 Infineon Technologies

IPN70R1K4P7SATMA1

Infineon Technologies

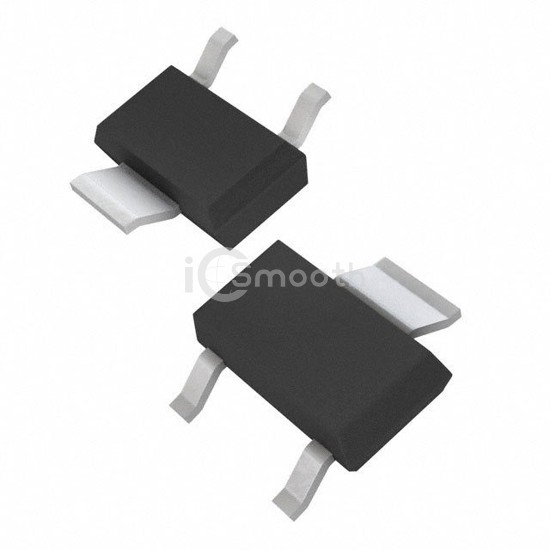

MOSFET N-CHANNEL 700V 4A SOT223

IPN70R1K4P7SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CHANNEL 700V 4A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 2,995

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 700mA, 10V
Vgs(th) (Max) @ Id	3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs	4.7 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	158 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	6.2W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223
Package / Case	TO-261-4, TO-261AA
