Name: IPN60R1K0PFD7SATMA1
Brand: Infineon Technologies
SKU: IPN60R1K0PFD7SATMA1
Price: 1.01 USD
Availability: InStock

REF: IPN60R1K0PFD7SATMA1 Infineon Technologies

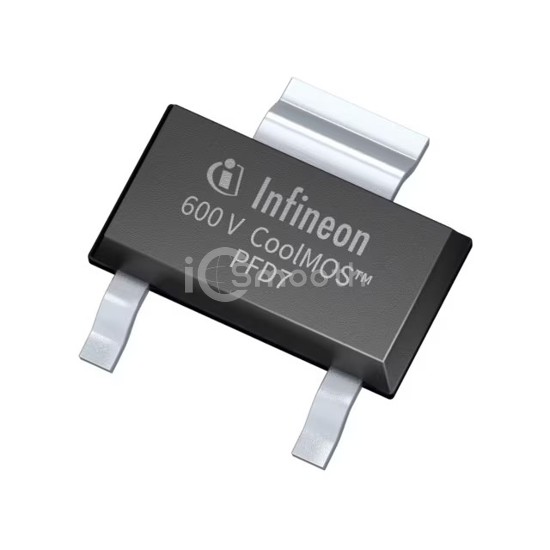

IPN60R1K0PFD7SATMA1

Infineon Technologies

CONSUMER PG-SOT223-3

IPN60R1K0PFD7SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. CONSUMER PG-SOT223-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 5,963

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	4.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	230 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	6W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223-4
Package / Case	TO-261-4, TO-261AA
