Name: IPLU250N04S41R7XTMA1
Brand: Infineon Technologies
SKU: IPLU250N04S41R7XTMA1
Price: 2.38 USD
Availability: InStock

REF: IPLU250N04S41R7XTMA1 Infineon Technologies

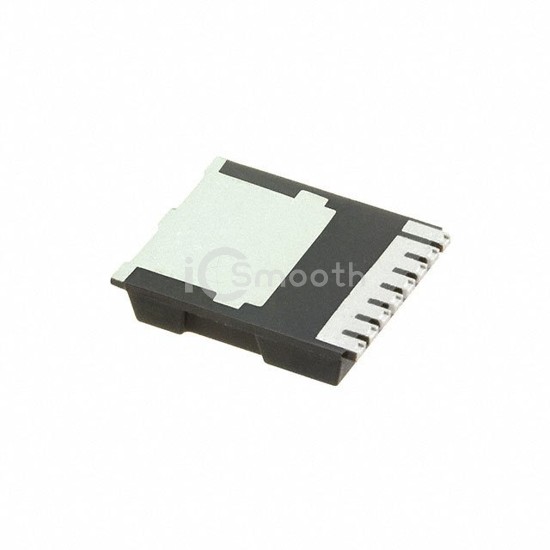

IPLU250N04S41R7XTMA1

Infineon Technologies

MOSFET N-CH 40V 250A 8HSOF

IPLU250N04S41R7XTMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 250A 8HSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 8,554

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	250A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.7mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4V @ 80µA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7900 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	188W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HSOF-8-1
Package / Case	8-PowerSFN
