IPLK60R360PFD7ATMA1

In Stock: 4,815

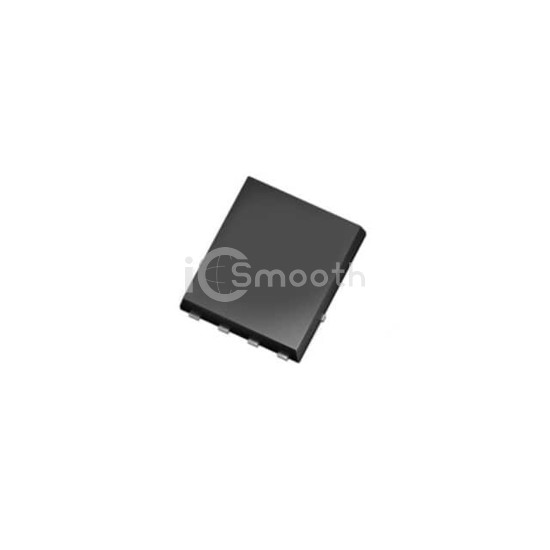

IPLK60R360PFD7ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPLK60R360PFD7ATMA1 Infineon Technologies
IPLK60R360PFD7ATMA1

Infineon Technologies

MOSFET N-CH 600V 13A THIN-PAK

IPLK60R360PFD7ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 13A THIN-PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,815

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs360mOhm @ 2.9A, 10V
Vgs(th) (Max) @ Id4.5V @ 140µA
Gate Charge (Qg) (Max) @ Vgs12.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds534 pF @ 400 V
FET Feature-
Power Dissipation (Max)74W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-52
Package / Case8-PowerTDFN
