Name: IPL65R460CFDAUMA1
Brand: Infineon Technologies
SKU: IPL65R460CFDAUMA1
Availability: InStock

REF: IPL65R460CFDAUMA1 Infineon Technologies

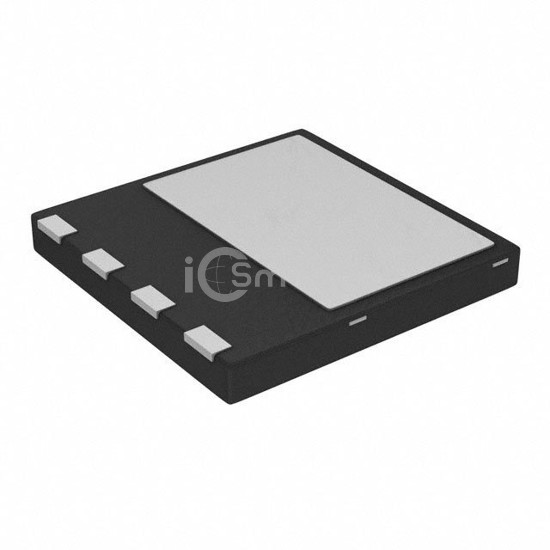

IPL65R460CFDAUMA1

MOSFET N-CH 650V 8.3A THIN-PAK

IPL65R460CFDAUMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 650V 8.3A THIN-PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 4-PowerTSFN.

Datasheet Request a Quote

In Stock: 8,958

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	8.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	460mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id	4.5V @ 300µA
Gate Charge (Qg) (Max) @ Vgs	31.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	83.3W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-VSON-4
Package / Case	4-PowerTSFN
