IPL60R180P6AUMA1

In Stock: 2,159

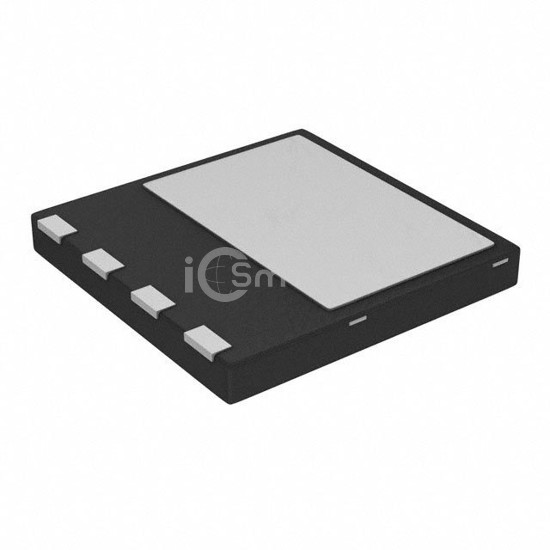

IPL60R180P6AUMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPL60R180P6AUMA1 Infineon Technologies
IPL60R180P6AUMA1

Infineon Technologies

MOSFET N-CH 600V 22.4A 4VSON

IPL60R180P6AUMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 22.4A 4VSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 4-PowerTSFN.

Datasheet Request a Quote

In Stock: 2,159

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C22.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs180mOhm @ 9A, 10V
Vgs(th) (Max) @ Id4.5V @ 750µA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2080 pF @ 100 V
FET Feature-
Power Dissipation (Max)176W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-VSON-4
Package / Case4-PowerTSFN
