Name: IPI80N06S3-07
Brand: Infineon Technologies
SKU: IPI80N06S3-07
Availability: InStock

REF: IPI80N06S3-07 Infineon Technologies

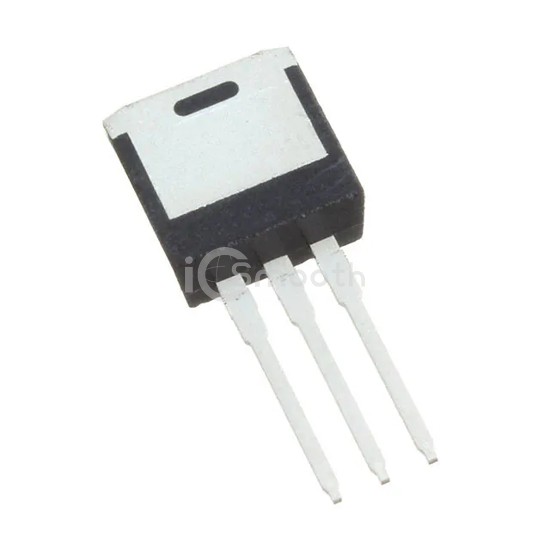

IPI80N06S3-07

MOSFET N-CH 55V 80A TO262-3

IPI80N06S3-07 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 55V 80A TO262-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 3,768

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.8mOhm @ 51A, 10V
Vgs(th) (Max) @ Id	4V @ 80µA
Gate Charge (Qg) (Max) @ Vgs	170 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7768 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	135W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO262-3
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
