Name: IPDD60R045CFD7XTMA1
Brand: Infineon Technologies
SKU: IPDD60R045CFD7XTMA1
Price: 13.28 USD
Availability: InStock

REF: IPDD60R045CFD7XTMA1 Infineon Technologies

IPDD60R045CFD7XTMA1

Infineon Technologies

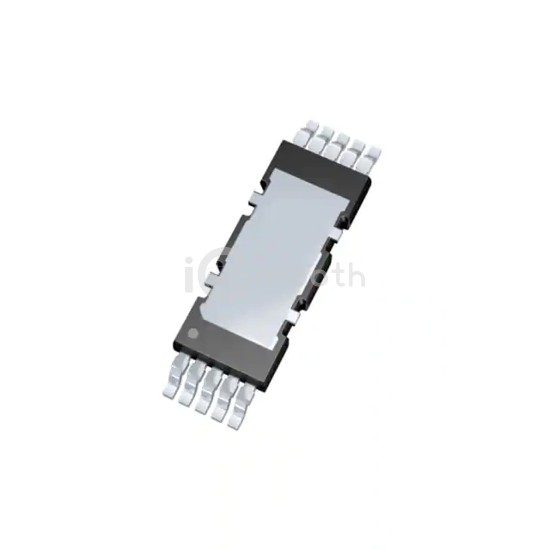

MOSFET N-CH 600V 61A HDSOP-10

IPDD60R045CFD7XTMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 600V 61A HDSOP-10. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-PowerSOP Module.

Datasheet Request a Quote

In Stock: 1,335

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	61A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	45mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	4.5V @ 900µA
Gate Charge (Qg) (Max) @ Vgs	79 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3194 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	379W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-10-1
Package / Case	10-PowerSOP Module
