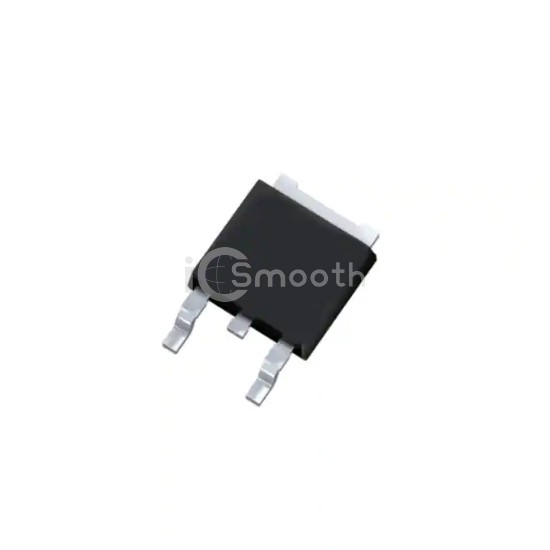

Name: IPD65R420CFDATMA2
Brand: Infineon Technologies
SKU: IPD65R420CFDATMA2
Price: 1.50 USD
Availability: InStock

REF: IPD65R420CFDATMA2 Infineon Technologies

IPD65R420CFDATMA2

Infineon Technologies

MOSFET N-CH 650V 8.7A TO251-3

IPD65R420CFDATMA2 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 650V 8.7A TO251-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 4,825

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	8.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	420mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id	4.5V @ 300µA
Gate Charge (Qg) (Max) @ Vgs	31.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	83.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO251-3
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
