IPC90N04S53R6ATMA1

In Stock: 8,393

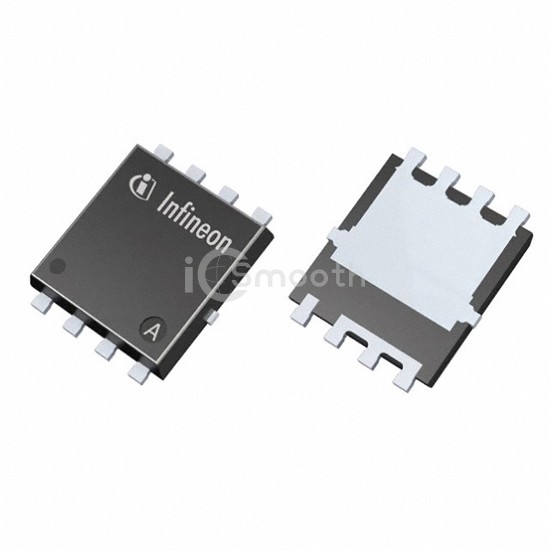

IPC90N04S53R6ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPC90N04S53R6ATMA1 Infineon Technologies
IPC90N04S53R6ATMA1

Infineon Technologies

MOSFET N-CH 40V 90A 8TDSON-34

IPC90N04S53R6ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 90A 8TDSON-34. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,393

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs3.6mOhm @ 45A, 10V
Vgs(th) (Max) @ Id3.4V @ 23µA
Gate Charge (Qg) (Max) @ Vgs32.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1950 pF @ 25 V
FET Feature-
Power Dissipation (Max)63W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-34
Package / Case8-PowerTDFN
