IPC100N04S5L2R6ATMA1

In Stock: 6,615

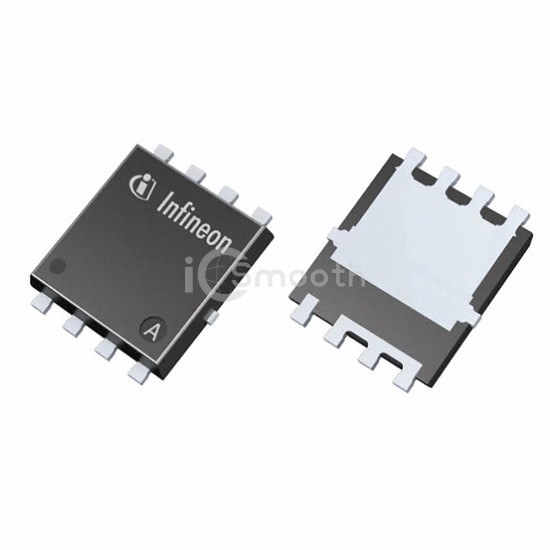

IPC100N04S5L2R6ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPC100N04S5L2R6ATMA1 Infineon Technologies
IPC100N04S5L2R6ATMA1

Infineon Technologies

MOSFET N-CH 40V 100A 8TDSON-34

IPC100N04S5L2R6ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 100A 8TDSON-34. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,615

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.6mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2V @ 30µA
Gate Charge (Qg) (Max) @ Vgs55 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds2925 pF @ 25 V
FET Feature-
Power Dissipation (Max)75W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-34
Package / Case8-PowerTDFN
