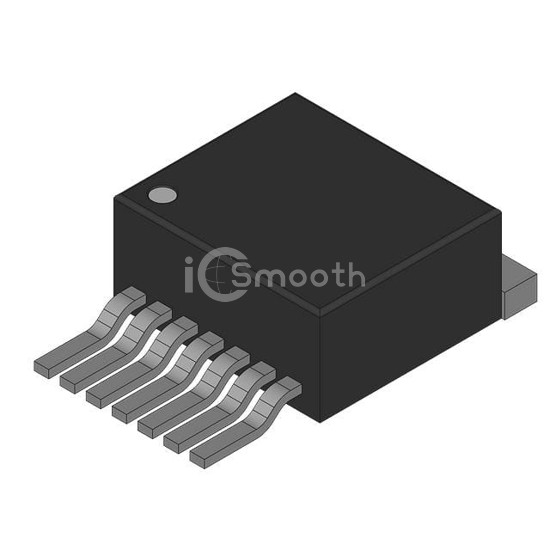

Name: IPB240N03S4LR8ATMA1928
Brand: Infineon Technologies
SKU: IPB240N03S4LR8ATMA1928
Availability: InStock

REF: IPB240N03S4LR8ATMA1928 Infineon Technologies

IPB240N03S4LR8ATMA1928

Infineon Technologies

N-CHANNEL POWER MOSFET

IPB240N03S4LR8ATMA1928 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 2,117

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.76mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	2.2V @ 230µA
Gate Charge (Qg) (Max) @ Vgs	380 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	26000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7-3
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
