Name: IPB180N03S4L-01
Brand: Infineon Technologies
SKU: IPB180N03S4L-01
Availability: InStock

REF: IPB180N03S4L-01 Infineon Technologies

IPB180N03S4L-01

IPB180N03 - 20V-40V N-CHANNEL AU

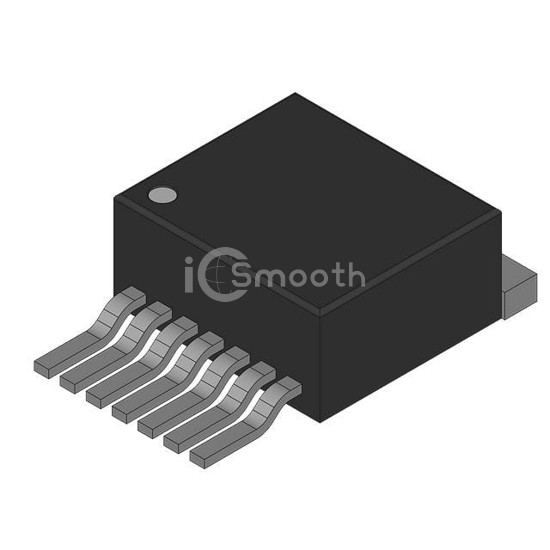

IPB180N03S4L-01 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. IPB180N03 - 20V-40V N-CHANNEL AU. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab), TO-263CB.

Datasheet Request a Quote

In Stock: 7,215

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.05mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	2.2V @ 140µA
Gate Charge (Qg) (Max) @ Vgs	239 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	17600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	188W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7-3-10
Package / Case	TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
