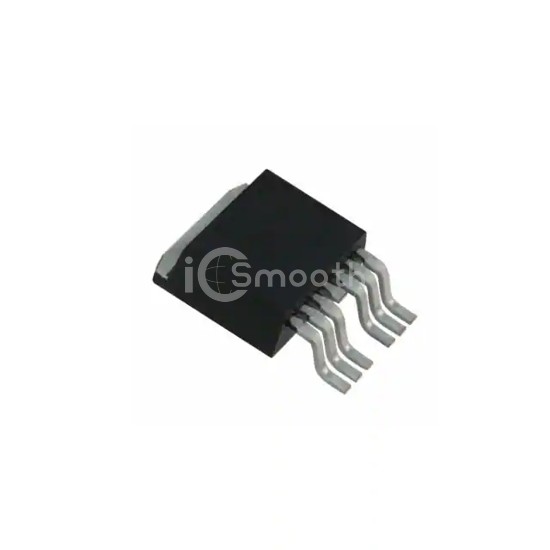

Name: IPB160N04S4H1ATMA1
Brand: Infineon Technologies
SKU: IPB160N04S4H1ATMA1
Price: 3.35 USD
Availability: InStock

REF: IPB160N04S4H1ATMA1 Infineon Technologies

IPB160N04S4H1ATMA1

Infineon Technologies

MOSFET N-CH 40V 160A TO263-7

IPB160N04S4H1ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 160A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 1,573

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4V @ 110µA
Gate Charge (Qg) (Max) @ Vgs	137 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10920 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	167W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7-3
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
