Name: IPB032N10N5ATMA1
Brand: Infineon Technologies
SKU: IPB032N10N5ATMA1
Price: 6.29 USD
Availability: InStock

REF: IPB032N10N5ATMA1 Infineon Technologies

IPB032N10N5ATMA1

Infineon Technologies

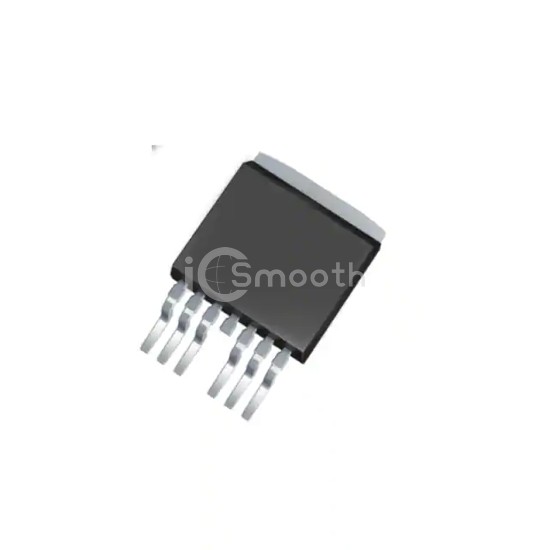

MOSFET N-CH 100V 166A TO263-7

IPB032N10N5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 166A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 8,486

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	166A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 83A, 10V
Vgs(th) (Max) @ Id	3.8V @ 125µA
Gate Charge (Qg) (Max) @ Vgs	95 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6970 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	187W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
