Name: IPB014N06NATMA1
Brand: Infineon Technologies
SKU: IPB014N06NATMA1
Price: 5.27 USD
Availability: InStock

REF: IPB014N06NATMA1 Infineon Technologies

IPB014N06NATMA1

Infineon Technologies

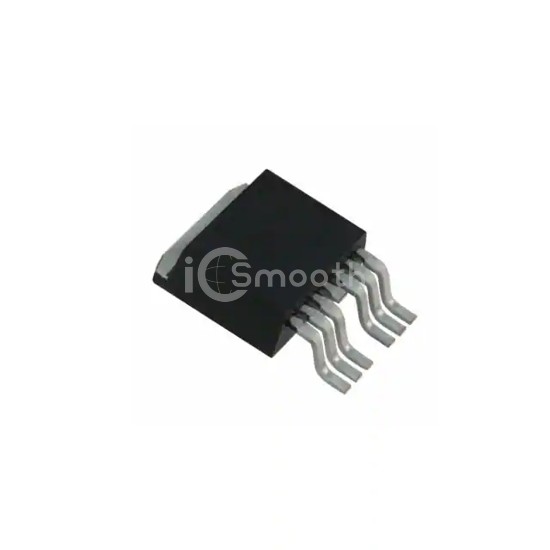

MOSFET N-CH 60V 34A/180A TO263-7

IPB014N06NATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 34A/180A TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 8,309

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	34A (Ta), 180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	2.8V @ 143µA
Gate Charge (Qg) (Max) @ Vgs	106 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7800 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 214W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
