Name: IPAW70R950CEXKSA1
Brand: Infineon Technologies
SKU: IPAW70R950CEXKSA1
Price: 0.98 USD
Availability: InStock

REF: IPAW70R950CEXKSA1 Infineon Technologies

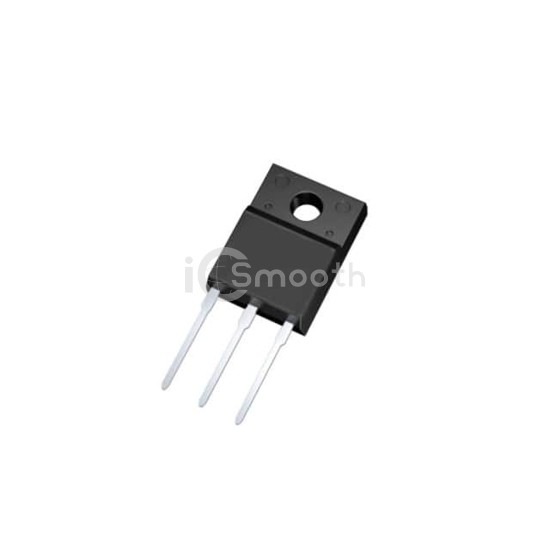

IPAW70R950CEXKSA1

Infineon Technologies

MOSFET N-CH 700V 7.4A TO220-3-31

IPAW70R950CEXKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 7.4A TO220-3-31. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 6,761

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	7.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	950mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	15.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	328 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	68W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-FP
Package / Case	TO-220-3 Full Pack
