IPA70R600P7SXKSA1

In Stock: 1,708

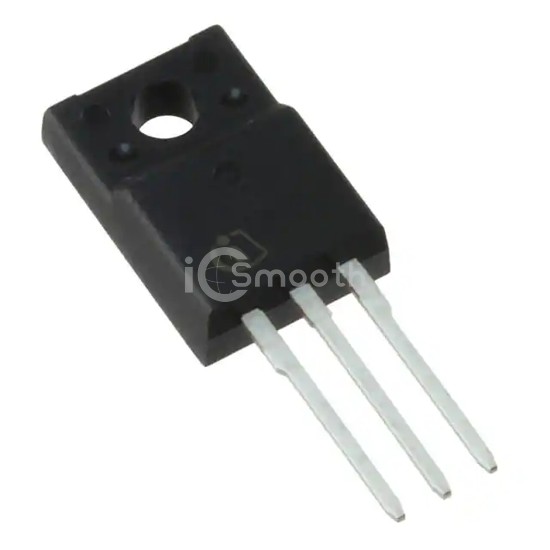

IPA70R600P7SXKSA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IPA70R600P7SXKSA1 Infineon Technologies
IPA70R600P7SXKSA1

Infineon Technologies

MOSFET N-CH 700V 8.5A TO220

IPA70R600P7SXKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 700V 8.5A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 1,708

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)700 V
Current - Continuous Drain (Id) @ 25°C8.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs600mOhm @ 1.8A, 10V
Vgs(th) (Max) @ Id3.5V @ 90µA
Gate Charge (Qg) (Max) @ Vgs10.5 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds364 pF @ 400 V
FET Feature-
Power Dissipation (Max)25W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-3-FP
Package / CaseTO-220-3 Full Pack
