ICE2QR4780Z

In Stock: 80,035

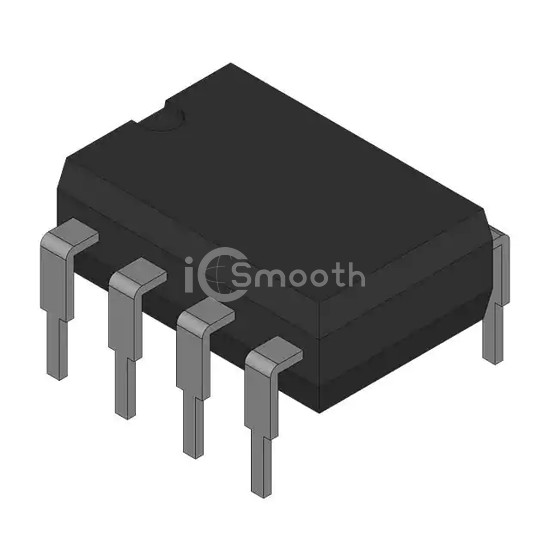

ICE2QR4780Z - Infineon Technologies - PMIC - AC DC Converters, Offline Switchers
REF: ICE2QR4780Z Infineon Technologies
ICE2QR4780Z

Infineon Technologies

IC OFFLINE SWITCH

ICE2QR4780Z is a PMIC - AC DC Converters, Offline Switchers manufactured by Infineon Technologies. IC OFFLINE SWITCH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 10.5V ~ 27V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 80,035

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown800V
TopologyFlyback
Voltage - Start Up18 V
Voltage - Supply (Vcc/Vdd)10.5V ~ 27V
Duty Cycle50%
Frequency - Switching52kHz
Power (Watts)39 W
Fault ProtectionCurrent Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Control FeaturesSoft Start
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device PackagePG-DIP-7
Mounting TypeThrough Hole
