Name: IAUS260N10S5N019TATMA1
Brand: Infineon Technologies
SKU: IAUS260N10S5N019TATMA1
Price: 7.80 USD
Availability: InStock

REF: IAUS260N10S5N019TATMA1 Infineon Technologies

IAUS260N10S5N019TATMA1

Infineon Technologies

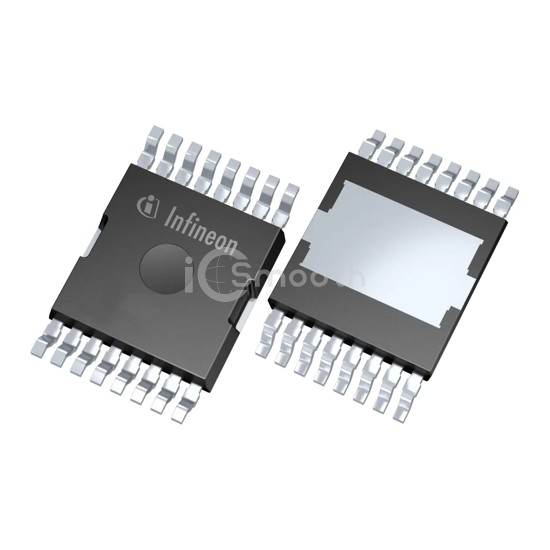

MOSFET N-CH 100V 260A HDSOP-16-2

IAUS260N10S5N019TATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 260A HDSOP-16-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 16-PowerSOP Module.

Datasheet Request a Quote

In Stock: 3,923

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	260A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.9mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.8V @ 210µA
Gate Charge (Qg) (Max) @ Vgs	166 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11830 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-16-2
Package / Case	16-PowerSOP Module
