Name: IAUC41N06S5L100ATMA1
Brand: Infineon Technologies
SKU: IAUC41N06S5L100ATMA1
Price: 1.01 USD
Availability: InStock

REF: IAUC41N06S5L100ATMA1 Infineon Technologies

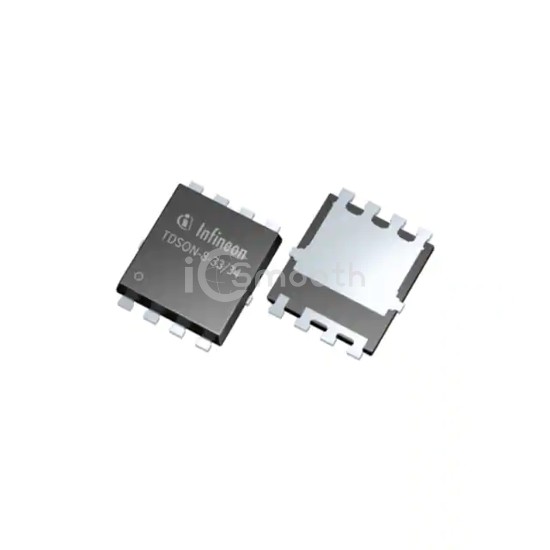

IAUC41N06S5L100ATMA1

Infineon Technologies

MOSFET N-CH 60V 41A TDSON-8-33

IAUC41N06S5L100ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 41A TDSON-8-33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,171

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	41A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	10mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 13µA
Gate Charge (Qg) (Max) @ Vgs	16.4 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1205 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-33
Package / Case	8-PowerTDFN
